PRODUCT CENTER

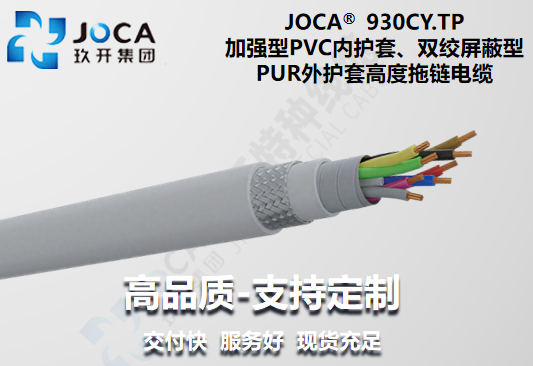

930CY.TP
應用范圍機械制造、機床設備、自動化生產線移動單元的應用。可以接觸油污環境使用，機械自動化安裝工程，適合戶外使用，耐腐蝕、酸堿、惡劣環境使用。高速高負載下移動使用場合，符合EMC要求的銅絲屏蔽，防止電磁干擾。 電纜結構1. 導體：精細無氧銅絲，多股絞合導體，符合DIN VDE 0295及IEC 60228中6類導體標準。2. 絕緣：高強度PVC混合物。3. 芯線顏色：顏色區分或數字編號區分，可根據顧客要求定制。4. 絞合：芯線絞合成對5. 內護套：特殊定制高強度彈性體混合物。6. 屏蔽：鍍錫銅絲編制屏蔽7. 護套：PUR8. 常規顏色：黑色、灰色、橙色。 技術參數：1. 額定電壓：300/300V、300/500V、450/750V測試電壓：1500V、2000V、2500V2. 最小彎曲半徑：固定安裝：6xD移動安裝：8xD3. 移動速度：≤10/s4. 使用壽命：≥2000萬次5. 使用溫度：固定安裝：-50℃~+105℃移動安裝：-40℃~+90℃ 型號芯數 × 標稱截面 \(mm2\)近似外徑 mm近似重量 \(kg/km\)930CY.TP2×2×0.147.461930CY.TP3×2×0.147.769930CY.TP4×2×0.148.380930CY.TP5×2×0.148.992930CY.TP6×2×0.149.6105930CY.TP7×2×0.1410.3118930CY.TP2×2×0.27.868930CY.TP3×2×0.28.278930CY.TP4×2×0.28.891930CY.TP5×2×0.29.5105930CY.TP6×2×0.210.2121930CY.TP7×2×0.211137930CY.TP2×2×0.25873930CY.TP3×2×0.258.483930CY.TP4×2×0.25998930CY.TP5×2×0.259.8113930CY.TP6×2×0.2512.2130930CY.TP7×2×0.2512.2150930CY.TP2×2×0.39.377930CY.TP3×2×0.39.790930CY.TP4×2×0.310.3105930CY.TP5×2×0.311.2122930CY.TP6×2×0.312.2140930CY.TP7×2×0.312.2159930CY.TP2×2×0.349.678930CY.TP3×2×0.341092930CY.TP4×2×0.3410.9108930CY.TP5×2×0.3411.7126930CY.TP6×2×0.3412.9144930CY.TP7×2×0.3412.9164930CY.TP2×2×0.410100930CY.TP3×2×0.410.4116

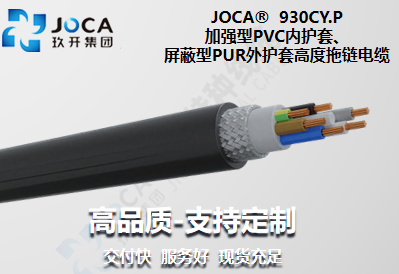

930CY.P
應用范圍機械制造、機床設備、自動化生產線移動單元的應用?？梢越佑|油污環境使用，機械自動化安裝工程，適合戶外使用，耐腐蝕、酸堿、惡劣環境使用。高速高負載下移動使用場合，符合EMC要求的銅絲屏蔽，防止電磁干擾。 電纜結構1. 導體：精細無氧銅絲，多股絞合導體，符合DIN VDE 0295及IEC 60228中6類導體標準。2. 絕緣：高強度PVC混合物。3. 芯線顏色：顏色區分或數字編號區分，可根據顧客要求定制。4. 內護套：特殊定制高強度彈性體混合物。5. 屏蔽：鍍錫銅絲編制屏蔽6. 護套：PUR7. 常規顏色：黑色、灰色、橙色。 技術參數：1. 額定電壓：300/300V、300/500V、450/750V、0.6/1KV測試電壓：1500V、2000V、2500V、3500V2. 最小彎曲半徑：固定安裝：6xD移動安裝：8xD3. 移動速度：≤10/s4. 使用壽命：≥2000萬次5. 使用溫度：固定安裝：-50℃~+105℃移動安裝：-40℃~+90℃ 型號芯數 × 標稱截面 \(mm2\)近似外徑 mm近似重量 \(kg/km\)930CY.P2×0.145.538930CY.P3×0.145.742930CY.P4×0.14647930CY.P5×0.146.454930CY.P6×0.146.860930CY.P7×0.147.267930CY.P8×0.147.673930CY.P9×0.14881930CY.P10×0.148.488930CY.P12×0.149.7108930CY.P14×0.1410.6123930CY.P16×0.1410.6128930CY.P2×0.25.742930CY.P3×0.2646930CY.P4×0.26.353930CY.P5×0.26.761930CY.P6×0.28.468930CY.P7×0.28.875930CY.P8×0.29.583930CY.P9×0.210.292930CY.P10×0.210.7100930CY.P12×0.211.5124930CY.P14×0.212.7141930CY.P16×0.212.9147930CY.P2×0.25745930CY.P3×0.257.250930CY.P4×0.257.657930CY.P5×0.258.265930CY.P6×0.258.773930CY.P7×0.259.382930CY.P8×0.259.990930CY.P9×0.2510.899930CY.P10×0.259.2109930CY.P12×0.2510.7134930CY.P14×0.2511.6153930CY.P16×0.2511.7161930CY.P2×0.35.847930CY.P3×0.36.252930CY.P4×0.36.661930CY.P5×0.37.169930CY.P6×0.37.678930CY.P7×0.3887930CY.P8×0.38.596930CY.P9×0.39106930CY.P10×0.39.4117930CY.P12×0.311145930CY.P14×0.312165930CY.P16×0.312173930CY.P2×0.345.848930CY.P3×0.346.253930CY.P4×0.346.662930CY.P5×0.347.171930CY.P6×0.347.680930CY.P7×0.34890930CY.P8×0.348.599930CY.P9×0.349109930CY.P10×0.349.4121930CY.P12×0.3411149930CY.P14×0.3412170930CY.P16×0.3412179930CY.P2×0.46.759930CY.P3×0.4767930CY.P4×0.47.577930CY.P5×0.4889930CY.P6×0.48.7102930CY.P7×0.49.2113930CY.P8×0.49.8126930CY.P9×0.410.4140930CY.P10×0.411156930CY.P12×0.412.9191930CY.P14×0.414.1221930CY.P16×0.414.1233930CY.P2×0.57.473930CY.P3×0.57.883930CY.P4×0.58.497930CY.P5×0.59112930CY.P6×0.59.7127930CY.P7×0.510.4144930CY.P8×0.511.1160930CY.P9×0.511.8178930CY.P10×0.513.3199930CY.P12×0.514.7246930CY.P14×0.516284930CY.P16×0.516.1301930CY.P2×0.758.485930CY.P3×0.758.798930CY.P4×0.759.4115930CY.P5×0.7510134930CY.P6×0.7510.9154930CY.P7×0.7511.5173930CY.P8×0.7512.7195930CY.P9×0.7513.9217930CY.P10×0.7514.4242930CY.P12×0.7515.7301930CY.P14×0.7517.1347930CY.P16×0.7517.4369930CY.P2×1.08.8114930CY.P3×1.09.3131930CY.P4×1.09.9156930CY.P5×1.010.8182930CY.P6×1.011.5211930CY.P7×1.012.5239930CY.P8×1.013.7268930CY.P9×1.014.7301930CY.P10×1.015.5337930CY.P2×1.510134930CY.P3×1.510.4156930CY.P4×1.511.3186930CY.P5×1.512.5219930CY.P6×1.513.4254930CY.P7×1.514.4289930CY.P8×1.515.7325930CY.P9×1.517.2364930CY.P10×1.518.1410930CY.P2×2.511.8202930CY.P3×2.512.7238930CY.P4×2.513.8287930CY.P5×2.514.9341930CY.P6×2.516.2397930CY.P7×2.517.4454930CY.P8×2.519.3513930CY.P9×2.521.3591930CY.P10×2.522.4651930CY.P2×4.014264930CY.P3×4.014.6314930CY.P4×4.016383930CY.P5×4.017.4456930CY.P6×4.019.2535
920CY.TP
應用范圍機械制造、機床設備、自動化生產線移動單元的應用。可以接觸油污環境使用，機械自動化安裝工程，適合戶外使用，耐腐蝕、酸堿、惡劣環境使用。高速高負載下移動使用場合，符合EMC要求的銅絲屏蔽，防止電磁干擾。電纜結構1.導體：精細無氧銅絲，多股絞合導體，符合DIN VDE 0295及IEC 60228中6類導體標準。2.絕緣：高強度PVC混合物。3.芯線顏色：顏色區分或數字編號區分，可根據顧客要求定制。4.絞合：芯線絞合成對5.屏蔽：無氧銅絲編制屏蔽6.護套：PUR7.常規顏色：黑色、灰色、橙色。技術參數：1.額定電壓：300/300V、300/500V、450/750V測試電壓：1500V、2000V、2500V2.最小彎曲半徑：固定安裝：6xD移動安裝：8xD3.移動速度：≤8/s4.使用壽命：≥2000萬次5.使用溫度：固定安裝：-50℃~+105℃ 移動安裝：-40℃~+90℃型號芯數 × 標稱截面 \(mm2\)近似外徑 mm近似重量 \(kg/km\)920CY.TP2×2×0.146.144920CY.TP3×2×0.146.654920CY.TP4×2×0.14766920CY.TP5×2×0.147.775920CY.TP6×2×0.148.388920CY.TP7×2×0.14992920CY.TP2×2×0.26.651920CY.TP3×2×0.26.965920CY.TP4×2×0.27.680920CY.TP5×2×0.28.292920CY.TP6×2×0.28.9108920CY.TP7×2×0.29.5113920CY.TP2×2×0.256.866920CY.TP3×2×0.257.482920CY.TP4×2×0.257.9104920CY.TP5×2×0.258.7120920CY.TP6×2×0.2510.7141920CY.TP7×2×0.2510.7148920CY.TP2×2×0.37.970920CY.TP3×2×0.38.288920CY.TP4×2×0.38.9111920CY.TP5×2×0.39.8129920CY.TP6×2×0.310.7152920CY.TP7×2×0.310.7160920CY.TP2×2×0.348.277920CY.TP3×2×0.348.698920CY.TP4×2×0.349.5120920CY.TP5×2×0.3410.2140920CY.TP6×2×0.3411.2165920CY.TP7×2×0.3411.2175920CY.TP2×2×0.48.578920CY.TP3×2×0.48.9100

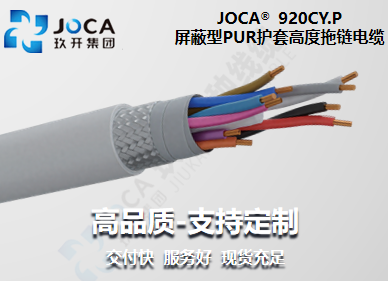

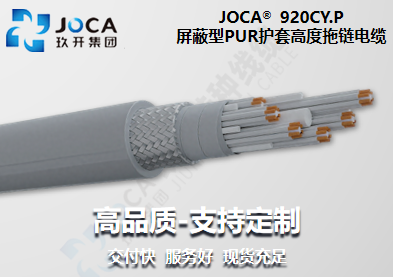

920CY.P
應用范圍機械制造、機床設備、自動化生產線移動單元的應用?？梢越佑|油污環境使用，機械自動化安裝工程，適合戶外使用，耐腐蝕、酸堿、惡劣環境使用。高速高負載下移動使用場合，符合EMC要求的銅絲屏蔽，防止電磁干擾。 電纜結構1. 導體：精細無氧銅絲，多股絞合導體，符合DIN VDE 0295及IEC 60228中6類導體標準。2. 絕緣：高強度PVC混合物。3. 芯線顏色：顏色區分或數字編號區分，可根據顧客要求定制。4. 屏蔽：無氧銅絲編制屏蔽5. 護套：PUR6. 常規顏色：黑色、灰色、橙色。 技術參數：1. 額定電壓：300/300V、300/500V、450/750V、0.6/1KV測試電壓：1500V、2000V、2500V、3500V2. 最小彎曲半徑：固定安裝：6xD移動安裝：8xD3. 移動速度：≤8/s4. 使用壽命：≥2000萬次5. 使用溫度：固定安裝：-50℃~+105℃移動安裝：-40℃~+90℃ 型號芯數 × 標稱截面 \(mm2\)近似外徑 mm近似重量 \(kg/km\)920CY.P2×0.144.526920CY.P3×0.144.728920CY.P4×0.145.235920CY.P5×0.145.539920CY.P6×0.145.844920CY.P7×0.146.453920CY.P8×0.146.760920CY.P9×0.147.165920CY.P10×0.147.575920CY.P12×0.148.285920CY.P14×0.148.7100920CY.P16×0.149.1107920CY.P2×0.24.728920CY.P3×0.25.134920CY.P4×0.25.438920CY.P5×0.25.743920CY.P6×0.26.953920CY.P7×0.27.360920CY.P8×0.28.168920CY.P9×0.28.779920CY.P10×0.29.388920CY.P12×0.210101920CY.P14×0.211119920CY.P16×0.211.2120920CY.P2×0.255.532920CY.P3×0.255.736920CY.P4×0.256.142920CY.P5×0.256.850920CY.P6×0.257.258920CY.P7×0.257.966920CY.P8×0.258.578920CY.P9×0.259.387920CY.P10×0.258.498920CY.P12×0.259.2112920CY.P14×0.259.9140920CY.P16×0.2510.2143920CY.P2×0.35.234920CY.P3×0.35.438920CY.P4×0.35.745920CY.P5×0.36.354920CY.P6×0.36.762920CY.P7×0.37.171920CY.P8×0.37.784920CY.P9×0.38.294920CY.P10×0.38.8109920CY.P12×0.39.5121920CY.P14×0.310.2150920CY.P16×0.310.6156920CY.P2×0.345.235920CY.P3×0.345.439920CY.P4×0.345.746920CY.P5×0.346.356920CY.P6×0.346.764920CY.P7×0.347.174920CY.P8×0.347.787920CY.P9×0.348.297920CY.P10×0.348.8113920CY.P12×0.349.5125920CY.P14×0.3410.2155920CY.P16×0.3410.6162920CY.P2×0.45.842920CY.P3×0.4648920CY.P4×0.46.659920CY.P5×0.47.168920CY.P6×0.47.680920CY.P7×0.48.395920CY.P8×0.48.8107920CY.P9×0.49.4120920CY.P10×0.410.2139920CY.P12×0.411.2164920CY.P14×0.412.1200920CY.P16×0.412.5205920CY.P2×0.56.553920CY.P3×0.56.862920CY.P4×0.57.375920CY.P5×0.58.188920CY.P6×0.58.6102920CY.P7×0.59.5123920CY.P8×0.510.1138920CY.P9×0.510.7156920CY.P10×0.511.7185920CY.P12×0.512.9206920CY.P14×0.514.2248920CY.P16×0.514.4264920CY.P2×0.756.963920CY.P3×0.757.274920CY.P4×0.75894920CY.P5×0.758.6106920CY.P6×0.759.4129920CY.P7×0.7510149920CY.P8×0.7511.1179920CY.P9×0.7512.2202920CY.P10×0.7512.8232920CY.P12×0.7514.1267920CY.P14×0.7515.5316920CY.P16×0.7515.8333920CY.P2×1.07.376920CY.P3×1.07.996920CY.P4×1.08.5116920CY.P5×1.09.3136920CY.P6×1.010159920CY.P7×1.010.9193920CY.P8×1.011.8220920CY.P9×1.013255920CY.P10×1.013.9293920CY.P2×1.58.5102920CY.P3×1.58.9129920CY.P4×1.59.9158920CY.P5×1.510.9189920CY.P6×1.511.7228920CY.P7×1.512.7264920CY.P8×1.514.1309920CY.P9×1.515.5358920CY.P10×1.516.3410920CY.P2×2.511.1167920CY.P3×2.511.1204920CY.P4×2.512.2251920CY.P5×2.513.2299920CY.P6×2.514.5362920CY.P7×2.515.8430920CY.P8×2.517.4512920CY.P9×2.519.4591920CY.P10×2.520.4678920CY.P2×4.012.3218920CY.P3×4.013266920CY.P4×4.014.3342920CY.P5×4.015.8403920CY.P6×4.017.3486

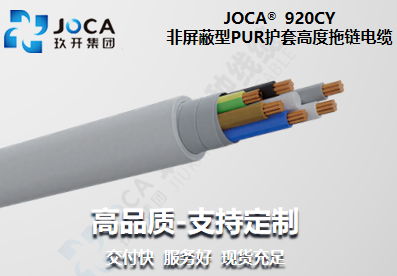

920CY
應用范圍機械制造、機床設備、自動化生產線移動單元的應用?？山佑|油污環境使用機械自動化安裝工程，適合戶外使用。耐腐蝕、酸堿、惡劣環境使用，高速高負載下移動使用場合。電纜結構1.導體：精細無氧銅絲，多股絞合導體，符合DIN VDE 0295及IEC 60228中6類導體標準。2.絕緣：高強度PVC混合物。3.芯線顏色：顏色區分或數字編號區分，可根據顧客要求定制。4.護套：PUR5.常規顏色：黑色、灰色、橙色。技術參數：1.額定電壓：300/300V、300/500V、450/750V、0.6/1KV測試電壓：1500V、2000V、2500V、3500V2.最小彎曲半徑：固定安裝：6xD移動安裝：8xD3.移動速度：≤8/s4.使用壽命：≥2000萬次5.使用溫度：固定安裝：-50℃~+105℃ 移動安裝：-40℃~+90℃型號芯數 × 標稱截面 \(mm2\)近似外徑 mm近似重量 \(kg/km\)920CY2×0.143.917920CY3×0.144.120920CY4×0.144.323920CY5×0.144.930920CY6×0.145.234920CY7×0.145.640920CY8×0.145.945920CY9×0.146.552920CY10×0.146.962920CY12×0.147.869920CY14×0.148.480920CY16×0.148.583920CY2×0.24.120920CY3×0.24.323920CY4×0.24.627920CY5×0.25.134920CY6×0.26.240920CY7×0.26.846920CY8×0.27.355920CY9×0.28.263920CY10×0.28.571920CY12×0.29.580920CY14×0.210.396920CY16×0.210.5101920CY2×0.25522920CY3×0.255.225920CY4×0.255.632920CY5×0.25638920CY6×0.256.745920CY7×0.257.154920CY8×0.257.960920CY9×0.258.673920CY10×0.257.984920CY12×0.258.894920CY14×0.259.2108920CY16×0.259.5114920CY2×0.34.423920CY3×0.34.830920CY4×0.35.135920CY5×0.35.542920CY6×0.3652920CY7×0.36.560920CY8×0.36.968920CY9×0.37.580920CY10×0.3891920CY12×0.39.199920CY14×0.39.8120920CY16×0.310.1130920CY2×0.344.423920CY3×0.344.831920CY4×0.345.136920CY5×0.345.544920CY6×0.34654920CY7×0.346.563920CY8×0.346.971920CY9×0.347.583920CY10×0.34895920CY12×0.349.1103920CY14×0.349.8125920CY16×0.3410.1136920CY2×0.45.233920CY3×0.45.539920CY4×0.45.946920CY5×0.46.355920CY6×0.4768920CY7×0.47.678920CY8×0.48.393920CY9×0.48.8105920CY10×0.49.4119920CY12×0.410.7133920CY14×0.411.5160920CY16×0.411.9170920CY2×0.55.942920CY3×0.56.149920CY4×0.56.861920CY5×0.57.374920CY6×0.58.190920CY7×0.58.7104920CY8×0.59.3118920CY9×0.510.2138920CY10×0.511.1158920CY12×0.512.3180920CY14×0.513.6212920CY16×0.513.9223920CY2×0.756.253920CY3×0.756.763920CY4×0.757.277920CY5×0.75895920CY6×0.758.7112920CY7×0.759.5134920CY8×0.7510.3153920CY9×0.7511.5180920CY10×0.7512.2205920CY12×0.7513.3232920CY14×0.7514.7276920CY16×0.7515.2293920CY2×1.06.867920CY3×1.07.179920CY4×1.07.9100920CY5×1.08.6120920CY6×1.09.5146920CY7×1.010.1169920CY8×1.011.3198920CY9×1.012.5233920CY10×1.013.1266920CY2×1.5893920CY3×1.58.4115920CY4×1.59.3145920CY5×1.510.1177920CY6×1.511.2208920CY7×1.511.2247920CY8×1.513.3288920CY9×1.514.8326920CY10×1.515.7375920CY2×2.59.8150920CY3×2.510.3192920CY4×2.511.4241920CY5×2.512.7293920CY6×2.514351920CY7×2.515.2398920CY8×2.516.9473920CY9×2.518.7545920CY10×2.519.8624920CY2×4.011.6202920CY3×4.012.4262920CY4×4.013.8329920CY5×4.015.2401920CY6×4.016.8480

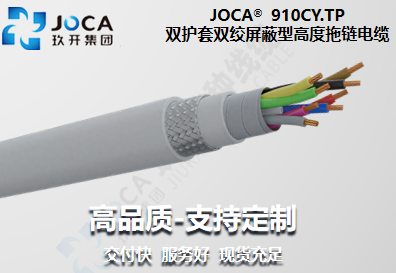

910CY.TP
應用范圍機械制造、機床設備、自動化生產線移動單元的應用。中度油污環境使用，機械自動化安裝工程，同服驅動，測量和控制技術系統。中度負載下移動使用場合，符合EMC要求的銅絲屏蔽，防止電磁干擾。電纜結構1. 導體：精細無氧銅絲，多股絞合導體，符合DIN VDE 0295及IEC 60228中6類導體標準。2. 絕緣：高強度VC混合物。3. 芯線顏色：顏色區分或數字編號區分，可根據顧客要求定制。4. 絞合：芯線絞合成對5. 內護套：特殊定制高強度彈性體混合物。6. 屏蔽：鍍錫銅絲編制屏蔽7. 常規顏色：黑色、灰色、橙色。 技術參數：1. 額定電壓：300/300V、300/500V、450/750V測試電壓：1500V、2000V、2500V2. 最小彎曲半徑：固定安裝：6xD移動安裝：8xD3. 移動速度：≤8/s4. 使用壽命：≥1200萬次5. 使用溫度：固定安裝：-30℃~+105℃移動安裝：-10℃~+90℃ 型號芯數 × 標稱截面 \(mm2\)近似外徑 mm近似重量 \(kg/km\)910CY.TP2×2×0.147.261910CY.TP3×2×0.147.569910CY.TP4×2×0.148.180910CY.TP5×2×0.148.792910CY.TP6×2×0.149.4105910CY.TP7×2×0.1410.1118910CY.TP2×2×0.27.668910CY.TP3×2×0.2878910CY.TP4×2×0.28.691910CY.TP5×2×0.29.3105910CY.TP6×2×0.210121910CY.TP7×2×0.210.8137910CY.TP2×2×0.257.873910CY.TP3×2×0.258.283910CY.TP4×2×0.258.898910CY.TP5×2×0.259.6113910CY.TP6×2×0.2512.4130910CY.TP7×2×0.2512.4150910CY.TP2×2×0.39.377910CY.TP3×2×0.39.790910CY.TP4×2×0.310.3105910CY.TP5×2×0.311.2122910CY.TP6×2×0.312.4140910CY.TP7×2×0.312.4159910CY.TP2×2×0.349.678910CY.TP3×2×0.341092910CY.TP4×2×0.3410.9108910CY.TP5×2×0.3411.7126910CY.TP6×2×0.3412.9144910CY.TP7×2×0.3412.9164910CY.TP2×2×0.410100910CY.TP3×2×0.410.4116

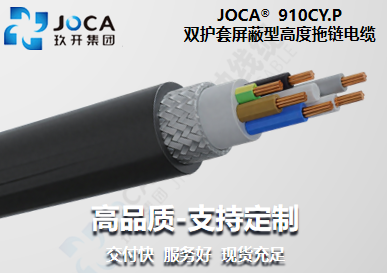

910CY.P
應用范圍機械制造、機床設備、自動化生產線移動單元的應用。中度油污環境使用，機械自動化安裝工程，同服驅動，測量和控制技術系統。中度負載下移動使用場合，符合EMC要求的銅絲屏蔽，防止電磁干擾。電纜結構1. 導體：精細無氧銅絲，多股絞合導體，符合DIN VDE 0295及IEC 60228中6類導體標準。2. 絕緣：高強度VC混合物。3. 芯線顏色：顏色區分或數字編號區分，可根據顧客要求定制。4. 內護套：特殊定制高強度彈性體混合物。5. 屏蔽：鍍錫銅絲編制屏蔽6. 常規顏色：黑色、灰色、橙色。 技術參數：1. 額定電壓：300/300V、300/500V、450/750V、0.6/1KV測試電壓：1500V、2000V、2500V、3500V2. 最小彎曲半徑：固定安裝：6xD移動安裝：8xD3. 移動速度：≤8/s4. 使用壽命：≥1200萬次5. 使用溫度：固定安裝：-30℃~+105℃移動安裝：-10℃~+90℃ 型號芯數 × 標稱截面 \(mm2\)近似外徑 mm近似重量 \(kg/km\)910CY.P2×0.145.338910CY.P3×0.145.542910CY.P4×0.145.847910CY.P5×0.146.254910CY.P6×0.146.660910CY.P7×0.14767910CY.P8×0.147.473910CY.P9×0.147.881910CY.P10×0.148.288910CY.P12×0.149.5108910CY.P14×0.1410.4123910CY.P16×0.1410.4128910CY.P2×0.25.542910CY.P3×0.25.846910CY.P4×0.26.153910CY.P5×0.26.561910CY.P6×0.28.468910CY.P7×0.28.875910CY.P8×0.29.583910CY.P9×0.210.292910CY.P10×0.210.7100910CY.P12×0.211.5124910CY.P14×0.212.7141910CY.P16×0.212.9147910CY.P2×0.25745910CY.P3×0.257.250910CY.P4×0.257.657910CY.P5×0.258.265910CY.P6×0.258.773910CY.P7×0.259.382910CY.P8×0.259.990910CY.P9×0.2510.899910CY.P10×0.259109910CY.P12×0.2510.5134910CY.P14×0.2511.4153910CY.P16×0.2511.5161910CY.P2×0.35.647910CY.P3×0.3652910CY.P4×0.36.461910CY.P5×0.36.969910CY.P6×0.37.478910CY.P7×0.37.887910CY.P8×0.38.396910CY.P9×0.38.8106910CY.P10×0.39.2117910CY.P12×0.310.8145910CY.P14×0.311.8165910CY.P16×0.311.8173910CY.P2×0.345.648910CY.P3×0.34653910CY.P4×0.346.462910CY.P5×0.346.971910CY.P6×0.347.480910CY.P7×0.347.890910CY.P8×0.348.399910CY.P9×0.348.8109910CY.P10×0.349.2121910CY.P12×0.3410.8149910CY.P14×0.3411.8170910CY.P16×0.3411.8179910CY.P2×0.46.559910CY.P3×0.46.867910CY.P4×0.47.377910CY.P5×0.47.889910CY.P6×0.48.5102910CY.P7×0.49113910CY.P8×0.49.6126910CY.P9×0.410.2140910CY.P10×0.410.8156910CY.P12×0.412.7191910CY.P14×0.413.9221910CY.P16×0.413.9233910CY.P2×0.57.273910CY.P3×0.57.683910CY.P4×0.58.297910CY.P5×0.58.8112910CY.P6×0.59.5127910CY.P7×0.510.2144910CY.P8×0.510.9160910CY.P9×0.511.6178910CY.P10×0.513.3199910CY.P12×0.514.5246910CY.P14×0.515.8284910CY.P16×0.516.1301910CY.P2×0.758.485910CY.P3×0.758.798910CY.P4×0.759.4115910CY.P5×0.7510134910CY.P6×0.7510.9154910CY.P7×0.7511.5173910CY.P8×0.7512.7195910CY.P9×0.7513.9217910CY.P10×0.7514.4242910CY.P12×0.7515.7301910CY.P14×0.7517.1347910CY.P16×0.7517.4369910CY.P2×1.09.4114910CY.P3×1.09.7131910CY.P4×1.010.4156910CY.P5×1.011.3182910CY.P6×1.012.5211910CY.P7×1.013.2239910CY.P8×1.014.4268910CY.P9×1.015.7301910CY.P10×1.016.6337910CY.P2×1.510134910CY.P3×1.510.4156910CY.P4×1.511.3186910CY.P5×1.512.5219910CY.P6×1.513.4254910CY.P7×1.514.4289910CY.P8×1.515.7325910CY.P9×1.517.2364910CY.P10×1.518.3410910CY.P2×2.511.8202910CY.P3×2.512.7238910CY.P4×2.513.8287910CY.P5×2.514.9341910CY.P6×2.516.2397910CY.P7×2.517.4454910CY.P8×2.519.5513910CY.P9×2.521.3578910CY.P10×2.522.4651910CY.P2×4.013.8264910CY.P3×4.014.4314910CY.P4×4.015.7383910CY.P5×4.017.2456910CY.P6×4.018.9535
900CY.TP
應用范圍機械制造、機床設備、自動化生產線移動單元的應用。中度油污環境使用，機械自動化安裝工程，同服驅動，測量和控制技術系統。中度負載下移動使用場合，符合EMC要求的銅絲屏蔽，防止電磁干擾。電纜結構1.導體：精細無氧銅絲，多股絞合導體，符合DIN VDE 0295及IEC 60228中6類導體標準。2.絕緣：高強度PVC混合物。3.芯線顏色：顏色區分或數字編號區分，可根據顧客要求定制。4.絞合：芯線絞合成對5.屏蔽：鍍錫銅絲編制屏蔽6.護套：特殊定制高強度彈性體混合物（NBR）。7.常規顏色：黑色、灰色、橙色。技術參數：1.額定電壓：300/300V、300/500V、450/750V測試電壓：1500V、2000V、2500V2.最小彎曲半徑：固定安裝：6xD移動安裝：8xD3.移動速度：≤5m/s4.使用壽命：≥1200萬次5.使用溫度：固定安裝：-30℃~+105℃ 移動安裝：-10℃~+90℃型號芯數 × 標稱截面 \(mm2\)近似外徑 mm近似重量 \(kg/km\)900CY.TP2×2×0.145.944900CY.TP3×2×0.146.454900CY.TP4×2×0.146.866900CY.TP5×2×0.147.575900CY.TP6×2×0.148.188900CY.TP7×2×0.148.892900CY.TP2×2×0.26.451900CY.TP3×2×0.26.765900CY.TP4×2×0.27.480900CY.TP5×2×0.2892900CY.TP6×2×0.28.7108900CY.TP7×2×0.29.3113900CY.TP2×2×0.256.666900CY.TP3×2×0.257.282900CY.TP4×2×0.257.7104900CY.TP5×2×0.258.5120900CY.TP6×2×0.2510.4141900CY.TP7×2×0.2510.4148900CY.TP2×2×0.37.870900CY.TP3×2×0.38.388900CY.TP4×2×0.39111900CY.TP5×2×0.39.9129900CY.TP6×2×0.310.8152900CY.TP7×2×0.310.8160900CY.TP2×2×0.34877900CY.TP3×2×0.348.498900CY.TP4×2×0.349.3120900CY.TP5×2×0.3410.1140900CY.TP6×2×0.3411.1165900CY.TP7×2×0.3411.1175900CY.TP2×2×0.48.578900CY.TP3×2×0.49.1100

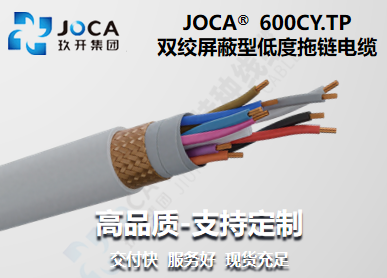

600CY.TP
應用范圍機械制造、機床設備、自動化生產線移動單元的應用。輕度油污環境使用，機械自動化安裝工程，同服驅動。測量和控制技術系統，符合EMC要求的銅絲屏蔽，防止電磁干擾。電纜結構1.導體：精細無氧銅絲，多股絞合導體，符合DIN VDE 0295及IEC 60228中5類導體標準。2.絕緣：PVC混合物。3.芯線顏色：顏色區分或數字編號區分，可根據顧客要求定制，4.絞合：芯線絞合成對5.屏蔽：無氧銅絲編織屏蔽。6.護套：特殊定制高強度彈性體混合物。7.常規顏色：黑色、灰色、橙色。技術參數：1.額定電壓：300/300V、300/500V、450/750V、0.6/1kV測試電壓：1500V、2000V、2500V、3500V2.最小彎曲半徑：固定安裝：16xD移動安裝：20xD3.移動速度：≤1.0m/s4.使用壽命：≥200萬次5.使用溫度：固定安裝：-20℃~+80℃ 移動安裝：-5℃~+70℃型號芯數 × 標稱截面 \(mm2\)近似外徑 mm近似重量 \(kg/km\)600CY.TP2×2×0.126.244600CY.TP3×2×0.126.554600CY.TP4×2×0.127.366600CY.TP5×2×0.127.775600CY.TP6×2×0.128.588600CY.TP7×2×0.128.591600CY.TP2×2×0.26.851600CY.TP3×2×0.27.465600CY.TP4×2×0.28.180600CY.TP5×2×0.29.992600CY.TP6×2×0.29.8108600CY.TP7×2×0.29.8113600CY.TP2×2×0.3870600CY.TP3×2×0.38.888600CY.TP4×2×0.39.8111600CY.TP5×2×0.310.8129600CY.TP6×2×0.311.6152600CY.TP7×2×0.311.6160600CY.TP2×2×0.48.778600CY.TP3×2×0.49.3100600CY.TP4×2×0.410.1125600CY.TP5×2×0.411.2146600CY.TP6×2×0.412.3173600CY.TP7×2×0.412.3183600CY.TP2×2×0.5988600CY.TP3×2×0.59.7112600CY.TP4×2×0.510.5141600CY.TP5×2×0.511.6165600CY.TP2×2×0.759.9121600CY.TP3×2×0.7510.4159600CY.TP4×2×0.7511.5205600CY.TP5×2×0.7512.7243

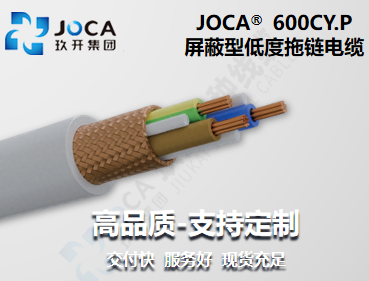

600CY.P
應用范圍機械制造、機床設備、自動化生產線移動單元的應用。輕度油污環境使用，機械自動化安裝工程，同服驅動。測量和控制技術系統，符合EMC要求的銅絲屏蔽，防止電磁干擾。電纜結構1.導體：精細無氧銅絲，多股絞合導體，符合DIN VDE 0295及IEC 60228中5類導體標準。2.絕緣：PVC混合物。3.芯線顏色：顏色區分或數字編號區分，可根據顧客要求定制，4.屏蔽：無氧銅絲編織屏蔽。5.護套：特殊定制高強度彈性體混合物。6.常規顏色：黑色、灰色、橙色。技術參數：1.額定電壓：300/300V、300/500V、450/750V、0.6/1kV測試電壓：1500V、2000V、2500V、3500V2.最小彎曲半徑：固定安裝：16xD移動安裝：20xD3.移動速度：≤1.0m/s4.使用壽命：≥200萬次5.使用溫度：固定安裝：-20℃~+80℃ 移動安裝：-5℃~+70℃型號芯數 × 標稱截面 \(mm2\)近似外徑 mm近似重量 \(kg/km\)600CY.P2×0.124.121600CY.P3×0.124.325600CY.P4×0.124.529600CY.P5×0.125.234600CY.P6×0.125.539600CY.P7×0.125.539600CY.P8×0.126.145600CY.P9×0.126.650600CY.P10×0.126.855600CY.P12×0.127.160600CY.P14×0.127.573600CY.P16×0.127.881600CY.P2×0.24.428600CY.P3×0.24.533600CY.P4×0.24.937600CY.P5×0.25.543600CY.P6×0.26.449600CY.P7×0.26.449600CY.P8×0.26.859600CY.P9×0.27.766600CY.P10×0.28.274600CY.P12×0.28.483600CY.P14×0.28.799600CY.P16×0.29.1110600CY.P2×0.35.636600CY.P3×0.35.841600CY.P4×0.36.349600CY.P5×0.36.757600CY.P6×0.37.365600CY.P7×0.37.365600CY.P8×0.37.880600CY.P9×0.38.896600CY.P10×0.38.5105600CY.P12×0.38.8120600CY.P14×0.39.3135600CY.P16×0.39.7149600CY.P2×0.45.240600CY.P3×0.45.548600CY.P4×0.46.354600CY.P5×0.46.662600CY.P6×0.47.275600CY.P7×0.47.282600CY.P8×0.47.991600CY.P9×0.48.6110600CY.P10×0.49123600CY.P12×0.49.4137600CY.P14×0.49.8153600CY.P16×0.410.3171600CY.P2×0.55.544600CY.P3×0.55.752600CY.P4×0.56.770600CY.P5×0.5779600CY.P6×0.57.691600CY.P7×0.57.697600CY.P8×0.58.3110600CY.P9×0.59.1123600CY.P10×0.59.7138600CY.P12×0.510.3156600CY.P14×0.510.8187600CY.P16×0.511.3211600CY.P2×0.756.657600CY.P3×0.75775600CY.P4×0.757.699600CY.P5×0.758.3115600CY.P6×0.758.9134600CY.P7×0.758.9146600CY.P8×0.759.8165600CY.P9×0.7510.7186600CY.P10×0.7511.4213600CY.P12×0.7512.1244600CY.P14×0.7512.8287600CY.P16×0.7513.2325600CY.P2×1.07.262600CY.P3×1.07.785600CY.P4×1.08.5110600CY.P5×1.09.2125600CY.P6×1.010.2149600CY.P7×1.010.2161600CY.P8×1.010.9182600CY.P9×1.011.8204600CY.P10×1.012.6222600CY.P12×1.013.1254600CY.P14×1.013.7307600CY.P16×1.014.6348600CY.P2×1.5884600CY.P3×1.58.4107600CY.P4×1.59.3139600CY.P5×1.510.2165600CY.P6×1.511.1193600CY.P7×1.511.1210600CY.P8×1.511.9237600CY.P9×1.512.9266600CY.P10×1.514297600CY.P2×2.59.6126600CY.P3×2.510.1164600CY.P4×2.511.9202600CY.P5×2.512.1243600CY.P6×2.513.1284600CY.P7×2.513.1312600CY.P8×2.514.2361600CY.P9×2.515.6419600CY.P10×2.516.6458600CY.P2×4.011.4209600CY.P3×4.012.2265600CY.P4×4.013.2327600CY.P5×4.014.6387600CY.P2×6.012.6255600CY.P3×6.013.3339600CY.P4×6.014.7454600CY.P5×6.016.2544
600CY
應用范圍機械制造、機床設備、自動化生產線移動單元的應用。輕度油污環境使用，機械自動化安裝工程，同服驅動，測量和控制技術系統。電纜結構1.導體：精細無氧銅絲，多股絞合導體，符合DIN VDE 0295及IEC 60228中5類導體標準。2.絕緣：PVC混合物。3.芯線顏色：顏色區分或數字編號區分，可根據顧客要求定制，4.護套：特殊定制高強度彈性體混合物。5.常規顏色：黑色、灰色、橙色。技術參數：1.額定電壓：300/300V、300/500V、450/750V、0.6/1kV測試電壓：1500V、2000V、2500V、3500V2.最小彎曲半徑：固定安裝：16xD移動安裝：20xD3.移動速度：≤1.0m/s4.使用壽命：>200萬次5.使用溫度：固定安裝：-20℃~+80℃ 移動安裝：-5℃~+70℃型號芯數 × 標稱截面 \(mm2\)近似外徑 mm近似重量 \(kg/km\)600CY2×0.123.616600CY3×0.123.819600CY4×0.124.122600CY5×0.124.726600CY6×0.12530600CY7×0.12532600CY8×0.125.636600CY9×0.126.140600CY10×0.126.344600CY12×0.126.649600CY14×0.12761600CY16×0.127.368600CY2×0.23.922600CY3×0.24.125600CY4×0.24.430600CY5×0.2535600CY6×0.2640600CY7×0.2644600CY8×0.26.649600CY9×0.27.255600CY10×0.27.662600CY12×0.27.870600CY14×0.28.385600CY16×0.28.795600CY2×0.3528600CY3×0.35.333600CY4×0.35.940600CY5×0.36.447600CY6×0.36.954600CY7×0.36.960600CY8×0.37.667600CY9×0.38.382600CY10×0.3890600CY12×0.38.3104600CY14×0.38.8117600CY16×0.39.2130600CY2×0.44.732600CY3×0.4538600CY4×0.45.846600CY5×0.46.154600CY6×0.46.763600CY7×0.46.770600CY8×0.47.478600CY9×0.48.195600CY10×0.48.5107600CY12×0.48.9120600CY14×0.49.3135600CY16×0.49.8151600CY2×0.5536600CY3×0.55.243600CY4×0.56.252600CY5×0.56.564600CY6×0.57.174600CY7×0.57.182600CY8×0.57.896600CY9×0.58.6107600CY10×0.59.2125600CY12×0.59.8141600CY14×0.510.3163600CY16×0.510.8182600CY2×0.756.155600CY3×0.756.565600CY4×0.757.179600CY5×0.757.897600CY6×0.758.4108600CY7×0.758.4120600CY8×0.759.3134600CY9×0.7510.2160600CY10×0.7510.9180600CY12×0.7511.6214600CY14×0.7512.3241600CY16×0.7513.8268600CY2×1.06.864600CY3×1.07.277600CY4×1.0897600CY5×1.08.7115600CY6×1.09.6138600CY7×1.09.8157600CY8×1.010.7180600CY9×1.011.7201600CY10×1.012.4227600CY12×1.012.8256600CY14×1.013.5288600CY16×1.014.2321600CY2×1.57.891600CY3×1.58.5109600CY4×1.59.4134600CY5×1.510.4163600CY6×1.511.3195600CY7×1.511.3216600CY8×1.512.4248600CY9×1.513.5284600CY10×1.514.8327600CY2×2.59.4133600CY3×2.510.1162600CY4×2.511.1204600CY5×2.512.3248600CY6×2.513.3294600CY7×2.513.3327600CY8×2.514.6375600CY9×2.516420600CY10×2.517.4489600CY2×4.010.8186600CY3×4.011.4230600CY4×4.012.7299600CY5×4.014.3352600CY2×6.012250600CY3×6.012.7313600CY4×6.014.1394600CY5×6.015.6481

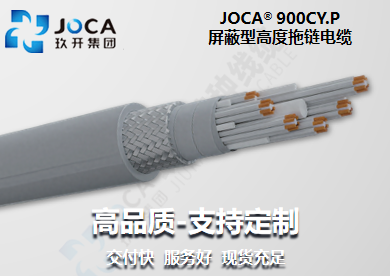

900CY.P
應用范圍機械制造、機床設備、自動化生產線移動單元的應用。高度油污環境使用，機械自動化安裝工程，同服驅動，測量和控制技術系統。高度負載下移動使用場合，符合EMC要求的銅絲屏蔽，防止電磁干擾。電纜結構1.導體：精細無氧銅絲，多股絞合導體，符合DIN VDE 0295及IEC 60228中6類導體標準。2.絕緣：特種PVC混合物。3.芯線顏色：顏色區分或數字編號區分，可根據顧客要求定制。4.屏蔽：鍍錫銅絲編制屏蔽5.護套：特殊定制高強度彈性體混合物。6.常規顏色：黑色、灰色、橙色。技術參數：1.額定電壓：300/300V、300/500V、450/750V、0.6/1KV測試電壓：1500V、2000V、2500V、3500V2.最小彎曲半徑：固定安裝：6xD移動安裝：8xD3.移動速度：≤5m/s4.使用壽命：≥1200萬次5.使用溫度：固定安裝：-30℃~+105℃ 移動安裝：-10℃~+90℃型號芯數 × 標稱截面 \(mm2\)近似外徑 mm近似重量 \(kg/km\)900CY.P2×0.144.326900CY.P3×0.144.528900CY.P4×0.14535900CY.P5×0.145.339900CY.P6×0.145.644900CY.P7×0.146.253900CY.P8×0.146.560900CY.P9×0.146.965900CY.P10×0.147.375900CY.P12×0.14885900CY.P14×0.148.5100900CY.P16×0.148.9107900CY.P2×0.24.528900CY.P3×0.24.934900CY.P4×0.25.238900CY.P5×0.25.543900CY.P6×0.26.653900CY.P7×0.27.160900CY.P8×0.27.868900CY.P9×0.28.579900CY.P10×0.28.988900CY.P12×0.29.9101900CY.P14×0.210.9119900CY.P16×0.211120900CY.P2×0.255.232900CY.P3×0.255.536900CY.P4×0.255.942900CY.P5×0.256.450900CY.P6×0.256.958900CY.P7×0.257.466900CY.P8×0.258.178900CY.P9×0.258.887900CY.P10×0.258.298900CY.P12×0.259112900CY.P14×0.259.7140900CY.P16×0.2510143900CY.P2×0.3534900CY.P3×0.35.238900CY.P4×0.35.545900CY.P5×0.36.154900CY.P6×0.36.562900CY.P7×0.36.971900CY.P8×0.37.584900CY.P9×0.3894900CY.P10×0.38.6109900CY.P12×0.39.3121900CY.P14×0.310150900CY.P16×0.310.4156900CY.P2×0.34535900CY.P3×0.345.239900CY.P4×0.345.546900CY.P5×0.346.156900CY.P6×0.346.564900CY.P7×0.346.974900CY.P8×0.347.587900CY.P9×0.34897900CY.P10×0.348.6113900CY.P12×0.349.3125900CY.P14×0.3410155900CY.P16×0.3410.4162900CY.P2×0.45.642900CY.P3×0.45.848900CY.P4×0.46.459900CY.P5×0.46.968900CY.P6×0.47.480900CY.P7×0.48.195900CY.P8×0.48.6107900CY.P9×0.49.2120900CY.P10×0.410139900CY.P12×0.411164900CY.P14×0.411.9200900CY.P16×0.412.3205900CY.P2×0.56.353900CY.P3×0.56.662900CY.P4×0.57.175900CY.P5×0.57.988900CY.P6×0.58.4102900CY.P7×0.59.3123900CY.P8×0.59.9138900CY.P9×0.510.5156900CY.P10×0.511.7185900CY.P12×0.513206900CY.P14×0.514248900CY.P16×0.514.3264900CY.P2×0.756.763900CY.P3×0.757.174900CY.P4×0.757.794900CY.P5×0.758.4106900CY.P6×0.759.1129900CY.P7×0.759.9149900CY.P8×0.7510.9179900CY.P9×0.7512202900CY.P10×0.7512.7232900CY.P12×0.7514.1267900CY.P14×0.7515.3316900CY.P16×0.7515.7333900CY.P2×1.07.276900CY.P3×1.07.696900CY.P4×1.08.3116900CY.P5×1.09136900CY.P6×1.09.8159900CY.P7×1.010.6193900CY.P8×1.011.8220900CY.P9×1.013255900CY.P10×1.013.6293900CY.P2×1.58.3102900CY.P3×1.58.8129900CY.P4×1.59.7158900CY.P5×1.510.6189900CY.P6×1.511.7228900CY.P7×1.512.6264900CY.P8×1.513.9309900CY.P9×1.515.3358900CY.P10×1.516.3410900CY.P2×2.510.2167900CY.P3×2.510.8204900CY.P4×2.512251900CY.P5×2.513.2299900CY.P6×2.514.4362900CY.P7×2.515.7430900CY.P8×2.517.4512900CY.P9×2.519.3591900CY.P10×2.520.4678900CY.P2×4.012.1218900CY.P3×4.012.9266900CY.P4×4.014.2342900CY.P5×4.015.7403900CY.P6×4.017.2486
